GMF can cope with high (boost) pressure gas admission
GMF provides gas mass flow measurement with high accuracy and repeatability
GMF provides the gas-mass-flow-measurement value via CAN message (CAN J1939)
GMF optimizes closed-loop enigne efficiency by validating the ratio between engine/generator power output and the GMF's gas-mass-flow-measurement-value
GMF offers fast, closed-loop control of gas mass flow with high accuracy
GMF offers model-based feed-forward control of lambda set point value
GMF offers the integral value of accrued gas mass consumption after defined reset events
Application

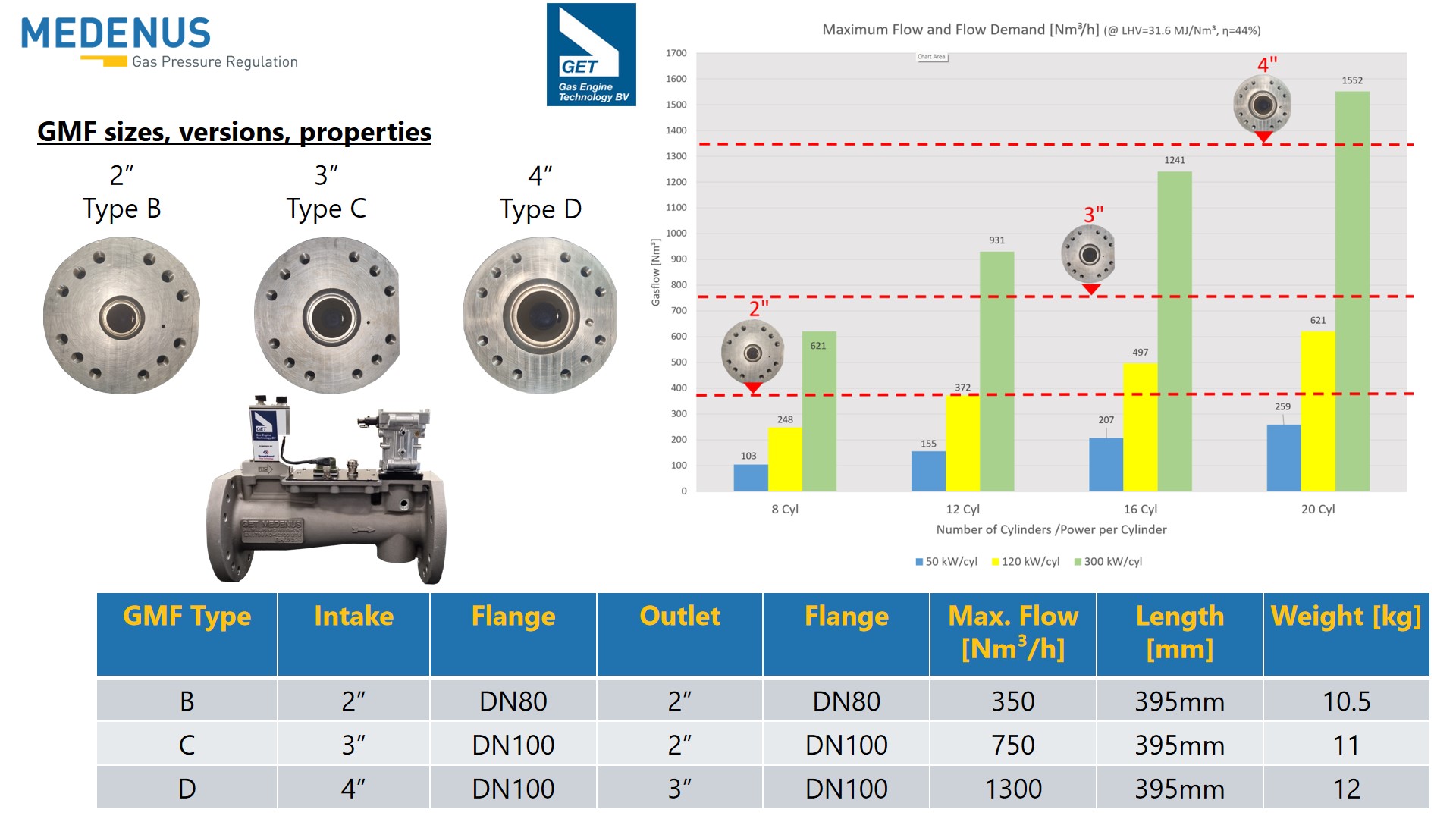

The GMF Gas Mass Flow Controller is a closed-loop control system for the fuel gas used in large gas engines, gas turbine furnaces, or burners. It comprises an electromechanical actuator, a butterfly valve, a gas flow sensor, gas composition sensors for Hydrogen (H2) and Carbon dioxide (CO2), and the ECU. The ECU is the heart of the GMF, as it controls Gas Admission Flow Control, Gas composition, and Gas Properties detection. The ECU supports CAN J1939 and CAN Open communication protocols with engine management systems, including MTU, INNIO, and COMAP. The GMF endorses IOT communication
